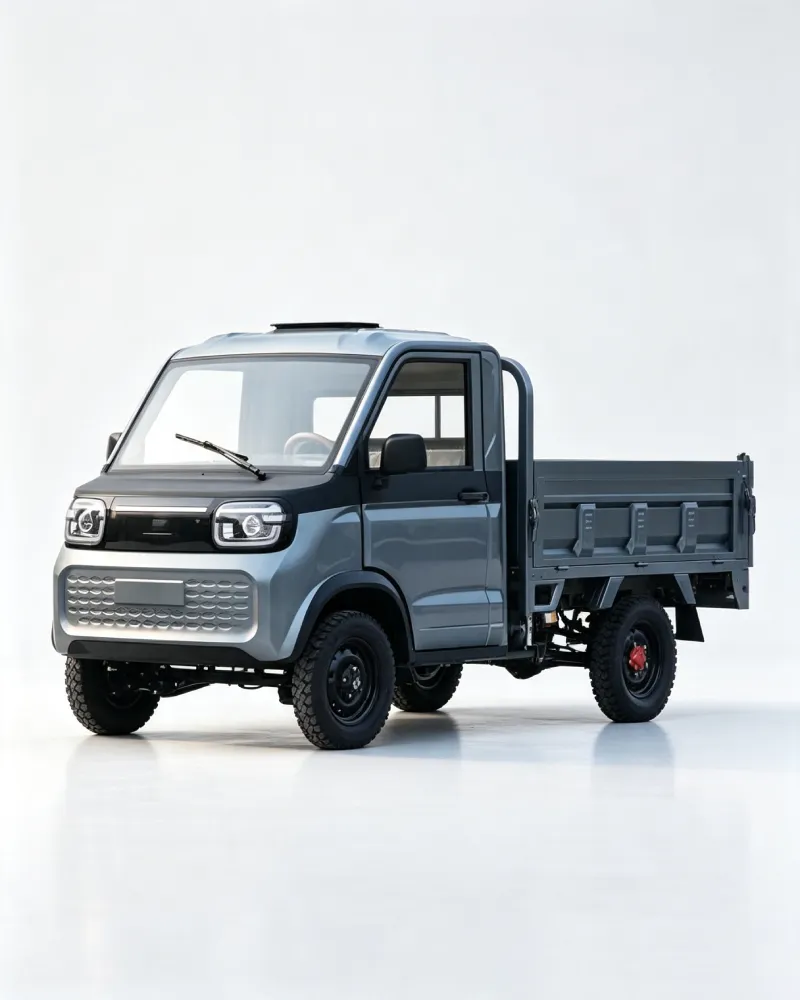

48V Electric Cargo Truck
Powerful Electric Motor
High efficiency motor provides strong power and stable performance.
Why Choose the 48V Electric Cargo TruckLong Driving Range
Large capacity battery supports long-distance transportation.
Durable Cargo Box
Heavy-duty cargo box suitable for different applications.
Comfortable Driving Cabin
Ergonomic design improves driving experience.
| Model number | WS type electric truck |
|---|---|
| Size | 3400*1350*1700mm |
| Carriage size | 1800*1300*330 |
| Max speed | 45km/h |
| Min steering radius | ≤5m |
| Max climbing ability(full) | 20% |
| Braking Distance | ≤7m |
| Working Range | 80-100km |
| Motor | 72V 4KW AC Motor, 72V 5KW AC motor is optional |
| Min Ground Clearance | ≥160mm |
| Loading Capacity(kg) | 800-1000kg |
| Tread | 2180mm |
| Wheel base | 1240/1270mm |
| Battery | 72V lead acid battery or lithium battery |
| Charger | Build-in smart car charger |
| Controller | 36 tubes |
| Driven Method | RR |
| Braking Method | 4-Wheel Large Disc Brakes |
| Front Axle loading Cap. | 600kg |
| Body Structure | Thickened Integrated Frame |
| Rear axile loading capacity | 1000kg |
| Tire Size | 145-70R12 Pneumatic tyres |
| Seat | leather+PU |
| Color | Customization |
| Cargo Box | Optional |
| High‑side | Optional |
